SL-48 METAL DOCTOR BLADE

Stainless Steel Doctor Blades
SL-48 (4037 Stainless Steel)
  • SL-48 (4037 Stainless Steel)
  • SL-48 (4037 Stainless Steel)
  • SL-48 (4037 Stainless Steel)
Request a Quote Material Composition Report

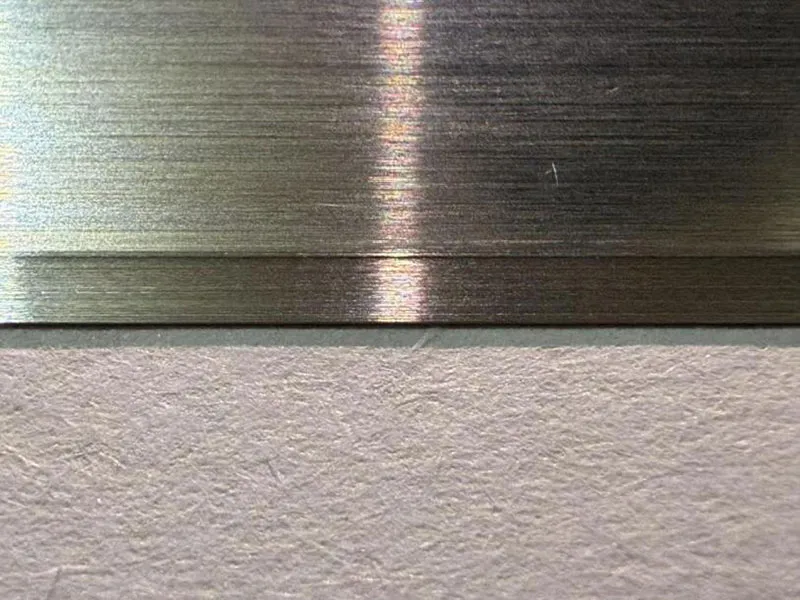

Blade Edge Shapes
  • SL-48 (4037 Stainless Steel) Lamella Blade Edge
  • SL-48 (4037 Stainless Steel) Bevel Blade Edge
Specifications
Width Range: 10mm-60mm
Width Tolerance: ±0.1mm
Thickness Range: 0.152mm-0.203mm
Thickness Tolerance: ±0.005mm
Hardness: 600-630HV
Tensile Strength: 2000Pa
Straightness: ≤0.5mm/3000mm
Dimensions
  • 10mm×0.15mm×100m
  • 30mm×0.15mm×100m
  • 30mm×0.2mm×100m
  • 35mm×0.15mm×100m
  • 35mm×0.2mm×100m
  • 40mm×0.15mm×100m
  • 40mm×0.2mm×100m
  • 50mm×0.15mm×100m
  • 50mm×0.2mm×100m
  • 60mm×0.15mm×100m
  • 60mm×0.2mm×100m
(The listed specifications are standard sizes. Customized dimensions can be provided upon request to meet specific printing requirements.)
Products
Application Processes

Gravure printing, Flexo printing, Roller Coating, Adhesive coating, Package printing

Products
Ink Types

Water based ink, UV ink, Aggressive inks with high pH value, Metallic fine particle-containing inks

Doctor blades made from 4037 stainless steel provide high durability and corrosion resistance, ensuring stable performance in demanding printing environments. With a hardness rating of up to 630HV, these metal doctor blades maintain edge stability over extended use, reducing the frequency of replacements. Designed for water-based and high-pH inks, they also perform well with metallic and specialty inks. The strong material composition resists chemical wear, ensuring consistent ink transfer and reliable print quality throughout long production runs.

Find the Best Doctor Blade for Your Printing Needs. Contact Us Now!
Email: 18255555333@163.com
Mobile: +86-18255555333
When should stainless steel doctor blades be used?

Stainless steel doctor blades are recommended when printing with water-based inks, UV inks, or high-pH solvents. Their corrosion-resistant properties prevent contamination caused by rust, ensuring stable ink transfer and consistent print quality.

What are the advantages of stainless steel doctor blades?

Stainless steel doctor blades provide long-term stability and consistent performance, even in demanding printing environments. Their corrosion resistance prevents rust buildup, keeping the ink free from contamination and ensuring uniform print quality. The smooth, well-finished blade edge ensures precise ink metering, minimizing issues such as streaks, ink buildup, and blade lines. With high durability and wear resistance, these blades last longer, reducing the need for frequent replacements and lowering maintenance costs. Their combination of reliability, longevity, and ink control makes them an excellent choice for printing professionals using water-based and high-pH inks.

Where are stainless steel doctor blades commonly used?

These blades are widely used in gravure and flexographic printing, especially in applications that involve water-based, UV, and high-pH solvent-based inks. Their resistance to corrosion and consistent performance makes them suitable for industries requiring sharp and uniform prints.

Which blade is best for challenging printing conditions with corrosive inks?

For harsh printing environments, the SL-48 stainless steel blade, made from 4037 stainless steel, is the ideal choice. It offers enhanced corrosion resistance and durability, with a lifespan exceeding 20,000 meters. This makes it particularly suitable for water-based and aggressive solvent inks, as well as specialty ink applications.
